Feature
1. Good durability: long service life.
2. High safety: the material is strong and not easily damaged
3. Strong anti-corrosion: better storage of various perishable and perishable items.
4. Easy maintenance
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Other, snacks factory |
| Showroom Location | Russia, South Africa, Zambia,DR Congo |
| Place of Origin | Henan, China |
| Production Capacity | as required |
| Weight | 470000 KG |
| Warranty | 2 years |
| Marketing Type | New Product 2023 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 2 Year |
| Core Components | Motor, Engine |
| Key Selling Points | Multifunctional |
| Condition | New |
| Brand Name | LY |
| Voltage | 380V 50Hz |
| Power | according to capacity |
| Dimension(L*W*H) | according to capacity |
| After-sales Service | Engineers available to service machinery overseas |
| Quality | European standard |
| material | galvanized/stainless steel |
| service life | Long Life Span 20-50 Years |
| Advantage | Multifunctional |
| Supply type | manufacturer |
| Application | All kinds of grain |
| Type | Fabricated |
| type of bottom | Flat or conical |
| Packaging and delivery | |
| Packaging Details | Big parts are packed by plastic bubble film and small parts by wooden case. |

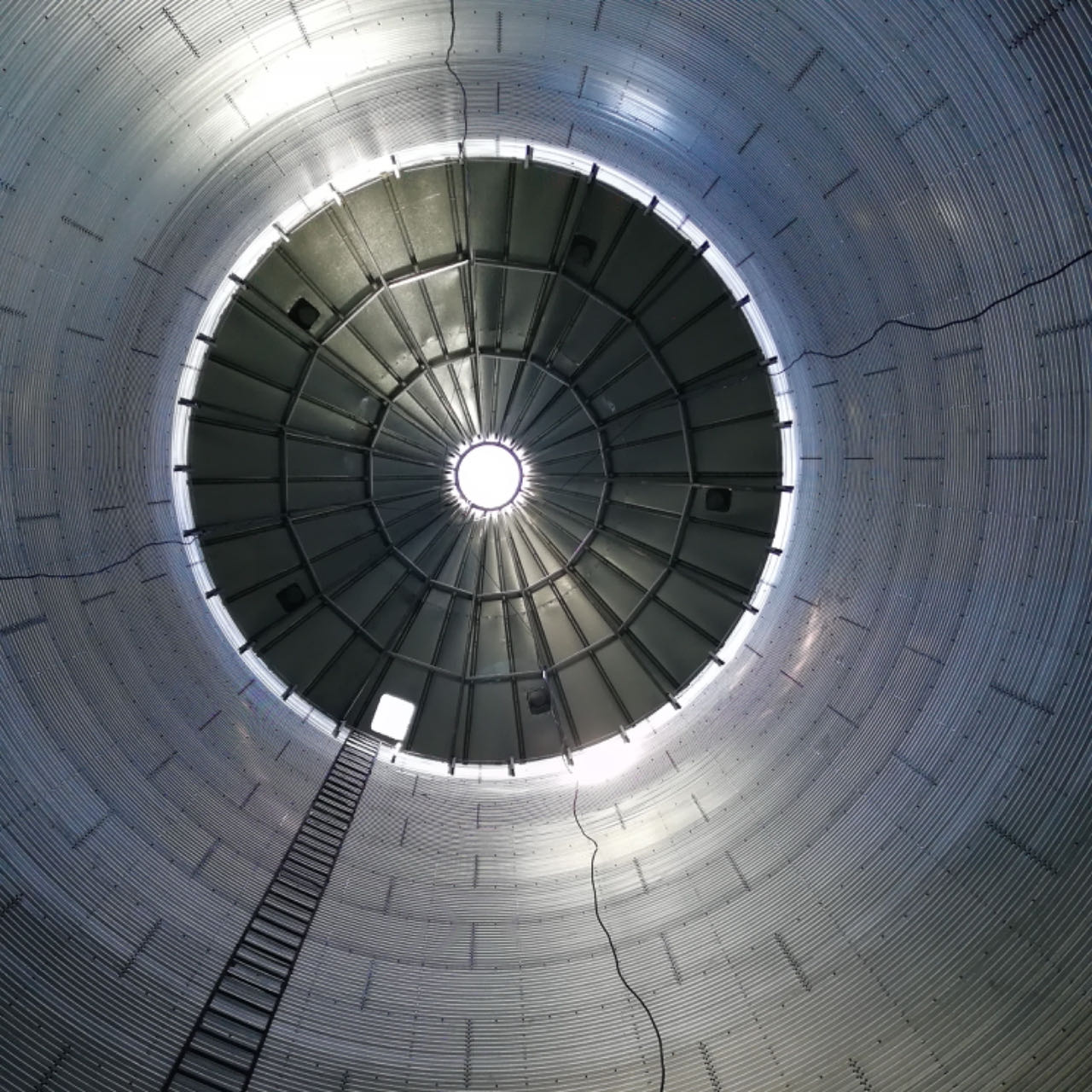

1. Silo roof:
It is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap and manholes etc.
The space age construction technology is adopted in the design of the silo framework,which can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.
2. Silo Body
including the wall plate, column, manhole, roof ladders etc.
1) The wall plate
Our steel is hot galvanized, which makes it durable and weather resistant.
Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.
2) Column
It is made by the Z-bar,which is used to reinforce the silo body.It is connected by junction panels.
3)Manhole and Roof Ladders
3. Silo bottom :
Type: Hopper bottom and Flat bottom
4. Aeration system:
Keeping air circulation for the grain inside the silo
5. Cleaning & unloading system :
to clean all the impurities (trash, dust, hay, stone, etc.) in every kind of grain ( wheat,paddy,beans,
barley, corn, canola, soybean etc.).
| Capacity | 20-50t 100t 500t 1000t 3000t 5000t 10000t 20000t |
| Volume | as required |
| structure | Fabricated steel silo |
| Material | hot-galvanized steel sheets/carbon steel/stainless steel |
| Zinc coating | 275 g /m2( as required) |
| Type of bottom | Hopper bottom and Flat bottom |
| Components of silo body | Sensor Level system,Ventilation system,Temperature control system,centrifugal fan |
| Complete set equipment | Cleaning,Transporting system,Silo body,Electric control system, |
| Application | All kinds of granular grain |
